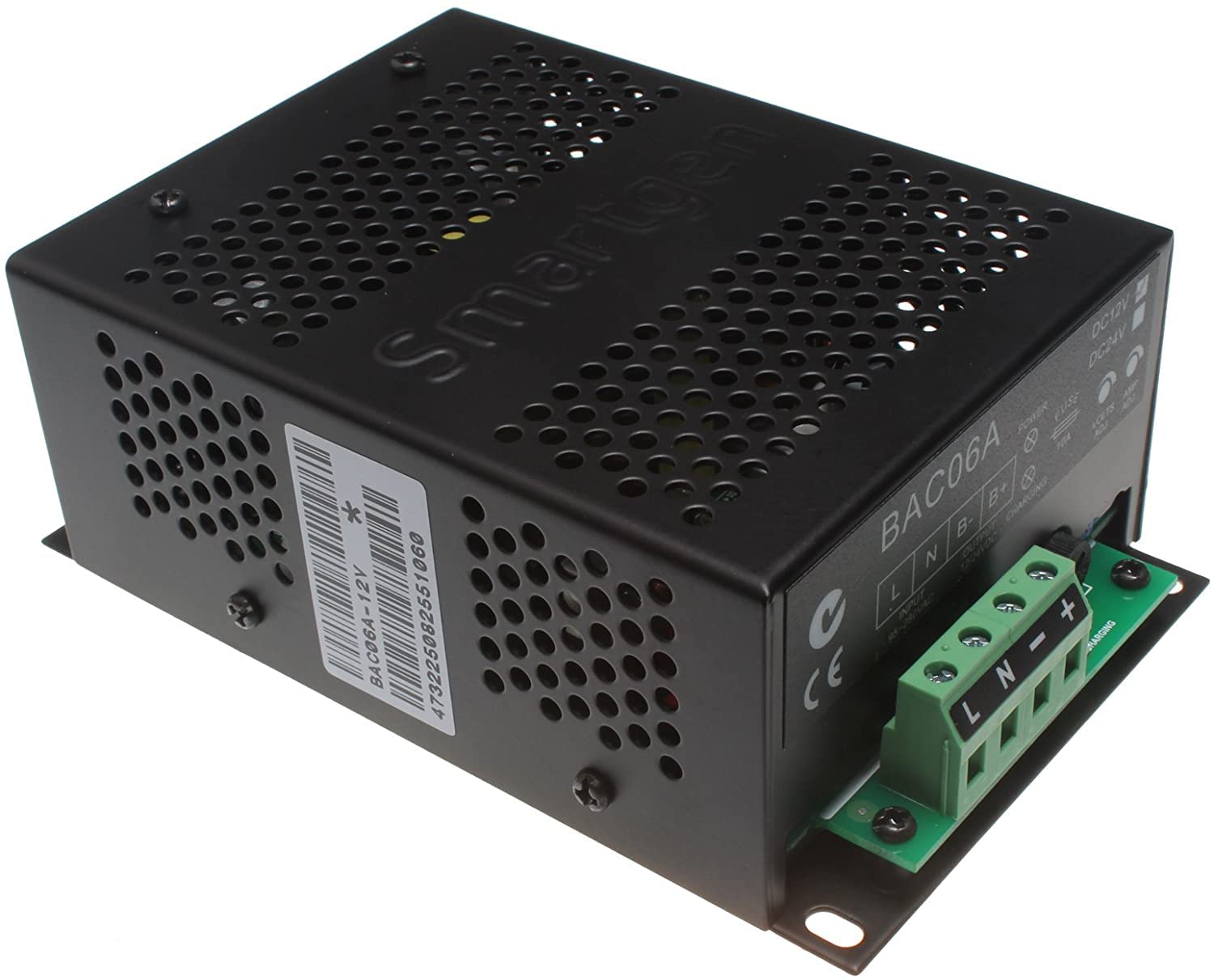

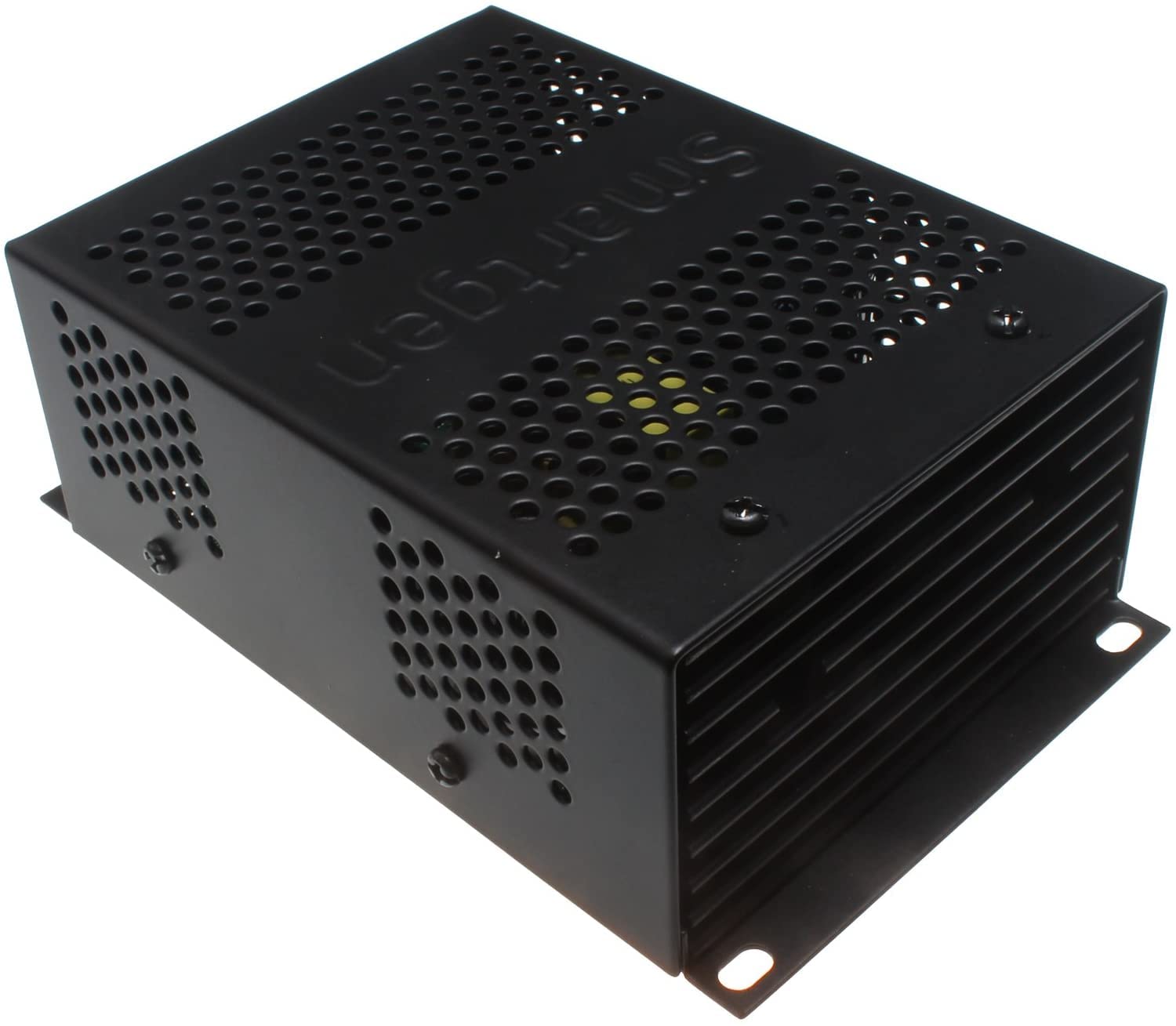

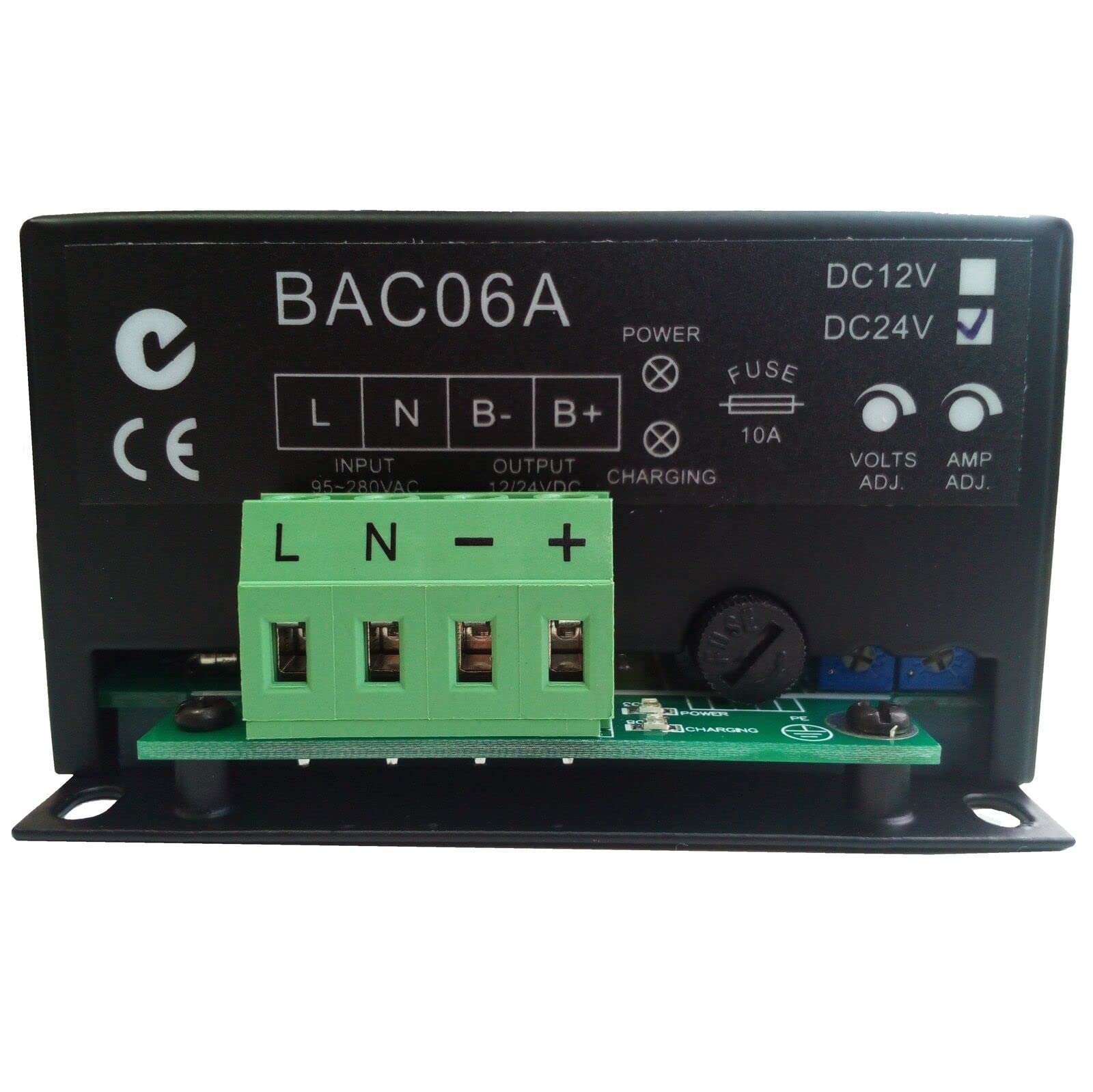

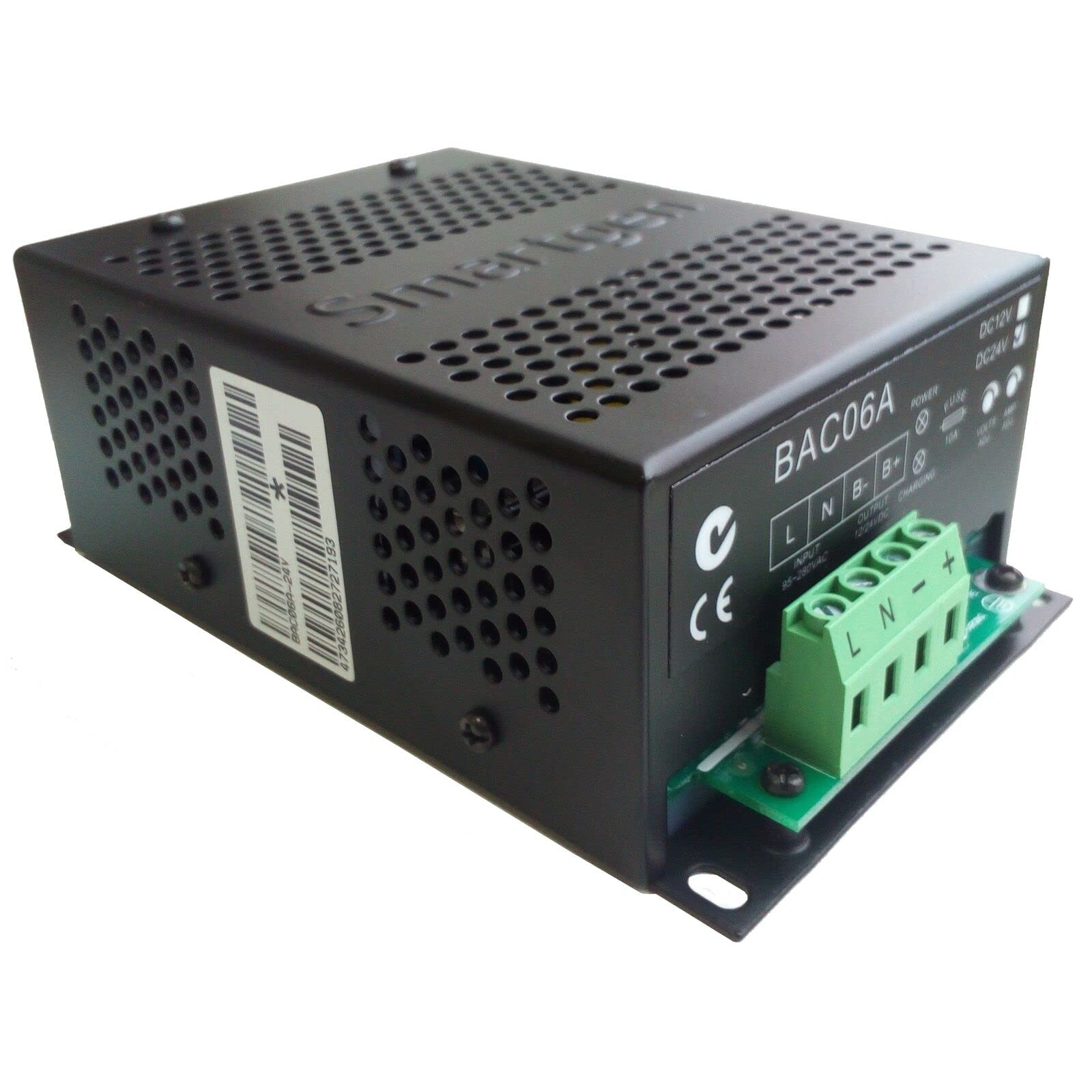

Smartgen BAC06A 24V Intelligent Floating Battery Charger for Diesel Generators - Perfect for Backup Power, Emergency Use & Off-Grid Applications

1.Designed in switching power structure, wide range of AC voltage input, small volume, light weight and high efficiency;2.Two-stage charging method (constant current firstly and then constant voltage), fully considering charging property of the lead-acid battery, can avoid overcharging and extent extend the battery life to the fullest;3.With short circuit and reverse connection protection;4.Charging voltage and current can be adjusted via potentiometer on the spot;5.Suitable for 12V and 24V batteries, corresponding types are BAC06A-12V and BAC06A-24V;6.LED display: Power indication and charging indicationBattery Voltage: 12V, 24VMax. Charge Current: 6A, 3ACharge Voltage Range: (13~14.5)V, (26~29)VCharge Current Range: (3~7)A, (1.5~3.5)AAC Voltage: (95~280)VACAC Frequency: 50 Hz/60HzPower Consumption: 120W, 115WNo-Load Power Consumption: Less than 3WEfficiency: More than 80%, More than 85%Working Temperature: (-40~60)°CStorage Temperature: (-40~85)°C

BAC06A switching battery charger adopts the latest switch power components, which is designed for charging lead-acid starting battery according to its property.

Smartgen BAC06A Diesel Generator Battery Charger is suitable for lead-acid battery float charge.

The maximum charge current for 12V charger is 6A.

The maximum charge current for 24V charger is 3A.

Designed in switching power structure, wide range of AC voltage input, small volume, light weight and high efficiency.
