Previous page Next page 1 How To Use The App 2 Charge Any Where 3 Schedule Your Time Previous page Next page 1 Fabric Cloth 2 Hand Carring Strap 3 Bag 4 Cable Ties 5 Hook More EV charger for Your Choice Level 1 EV Charger Add to Cart Level 2 EV Charger Add to Cart Level 1 EV Charger Add to Cart Level 2 EV Charger Add to Cart Customer Reviews 4.0 out of 5 stars 54 4.0 out of 5 stars 54 4.2 out of 5 stars 17 4.2 out of 5 stars 17 Price $109.99$109.99 $179.99$179.99 $119.99$119.99 $129.99$129.99 Maximum current 16A 32A 16A 32A Applicable Plug NEMA 5-15P & 6-20P NEMA 5-15P & 14-50P NEMA 5-15P & 6-20P NEMA 5-15P & 14-50P Waterproof IP65 IP65 IP65 IP65 Use EV Charger EV Charger EV Charger EV Charger Best Choice ✔ ✔ ✔ ✔ What is the charging speed like? How much current does it support? The level 1 ev charger is equipped with NEMA 6-20 Plug, offers 16A, 3.6kW output current, current adjustable 8A/10A/13A/16A, you can also adjust the current according to your needs. Does this ev charger level 1 have a scheduled charging feature to avoid peak-hour electricity bills? Yes. The 1-15 hour delay function prevents costly peak-hour electricity bills. How does this j1772 charger regulate current? This ev charger can adjust the current to 6-16A, which can be adjusted by long pressing the button on the control box screen.
【All-Round Protection】 The level 1 ev charger is made of high-quality materials, strong and safe. The portable ev charger level 1 control box can monitor the charging status overvoltage protection, overheating protection and low voltage protection. The level 1 charger control box casing has an IP65 waterproof rating, making it safer and more secure to use in bad weather. The plug of the ev car charger level 1 has a handle to protect your hands.
【Wifi Enabled, Smart APP Control】 The level 1 ev charger wifi supports wifi connection and can be remotely operated APP control. The j1772 charger current and charging time can be remotely controlled and adjusted, and the charging situation can be monitored through the mobile phone. Whether you are working outside, playing outside, or sleeping, you can charge with confidence.
【Delayed Charging Design】 The portable electric car charger considers different groups in the charging time design. The level 1 ev charger adopts a 1-15 hour delay charging design, so you can choose to charge at a convenient time period. Reduce unnecessary charging time, avoid excessive current consumption and high consumption, and reduce charging costs.

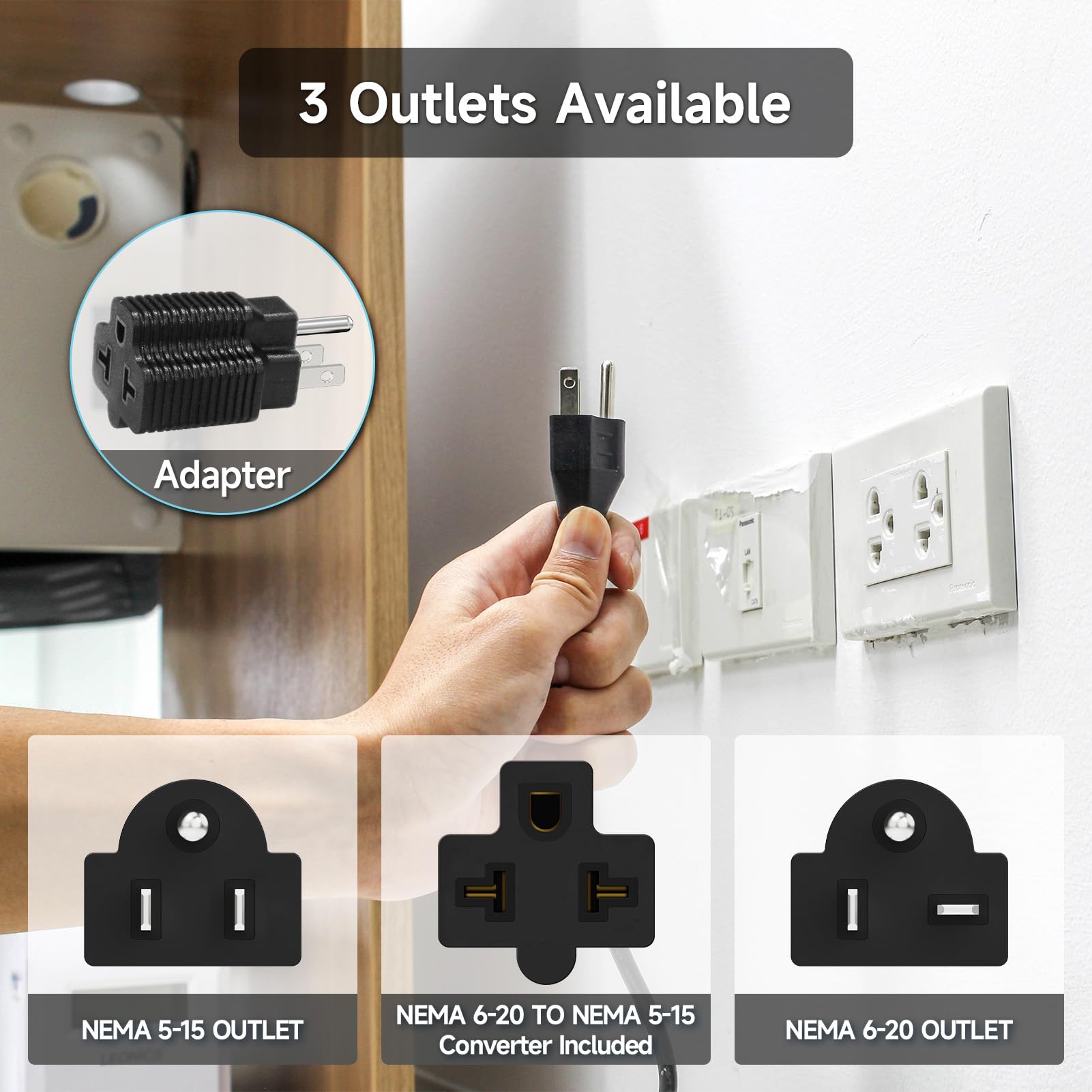

【High Efficiency Charging】 The portable electric car charger can be easily connected to a 110V household or 220V plug, and has a maximum power output of 3.6KW and adjustable current settings such as 6A/8A/10A/13A/16A. You can switch to the current you need for charging at any time, extending the life of the electric vehicle charger level 1. Say goodbye to ev chargers with slow charging and fixed charging modes.

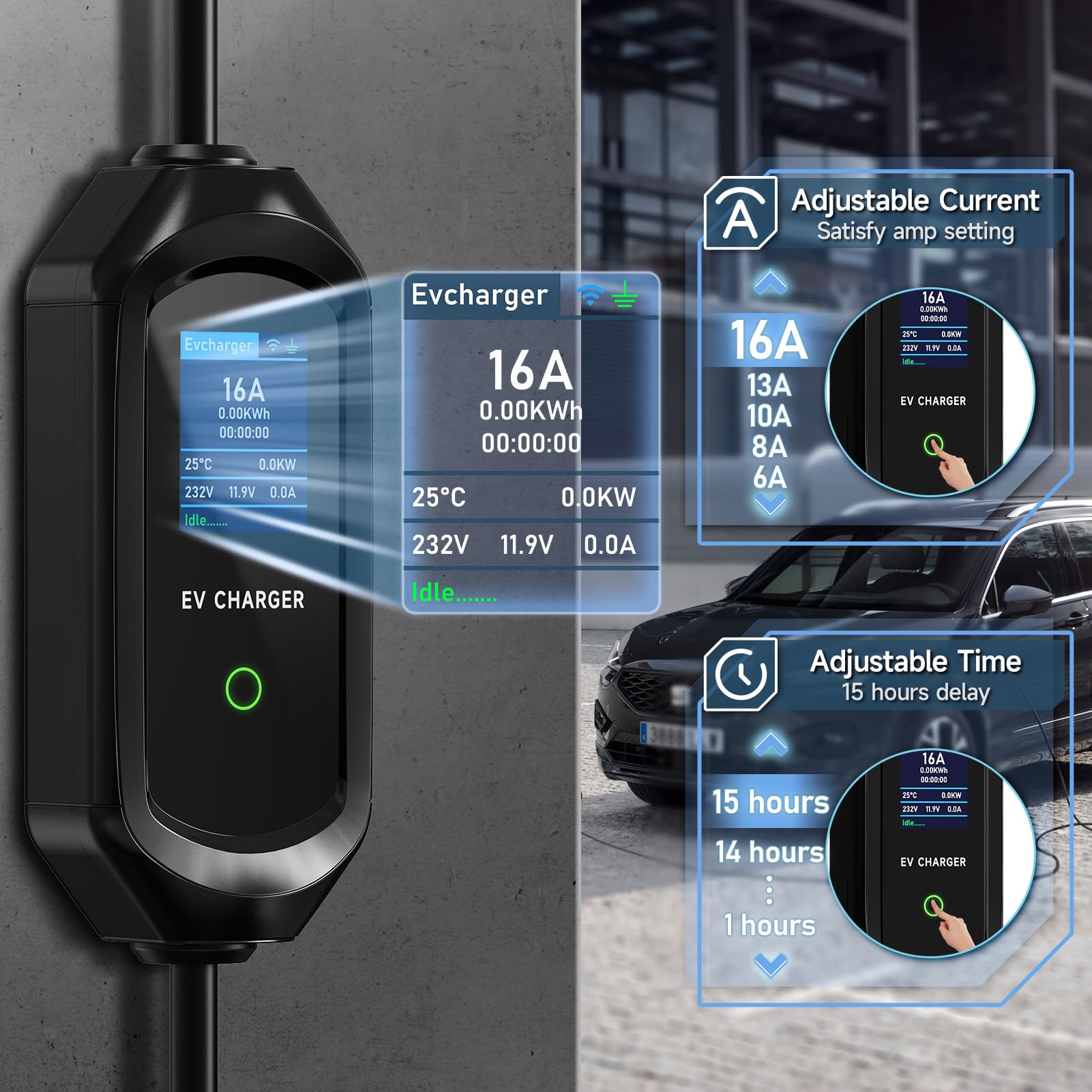

【LED Large Screen Display】 The portable ev charger is a color screen with a size of 2.8 inches, and bigger than other products. The selects the function mode by touching the screen button for a long time or a short time. During the charging process, you can clearly see the charging mode, charging voltage and current, temp, charging time, etc. Even at night, you can see the data on the level 1 ev charger 25ft screen, giving you 24-hour charging convenience.
Charger works great. The documentation can be improved. Specifically, it does not explain the center voltage shown on the display which tends to fluctuate between 12V and 6V. After doing some searching and testing, this is the voltage of the Control Pilot (CP) line. The CP line is the bi-directional communication line that allows the charger to communicate with the vehicle and is defined in the SAE J1772 / IEC 62196-2-1 standard. According to the standard, the CP voltage is 12V when the charger plug is not connected to the vehicle, 9V when the plug is connected to the vehicle and 6V when the vehicle is actively charging. Less common voltages are 0V (error condition) and -12V (fault condition). The standard also defines 3V as a valid voltage when a vehicle requires an exhaust fan be activated during the charging process. Happily, the charger translates the CP voltage into a more usable form on the display. For example, 12V corresponds to "Idle". Note that the voltage has a tolerance of +/- 5%; a voltage between 12.6 and 11.4 is acceptable for 12V. Mystery solved.
