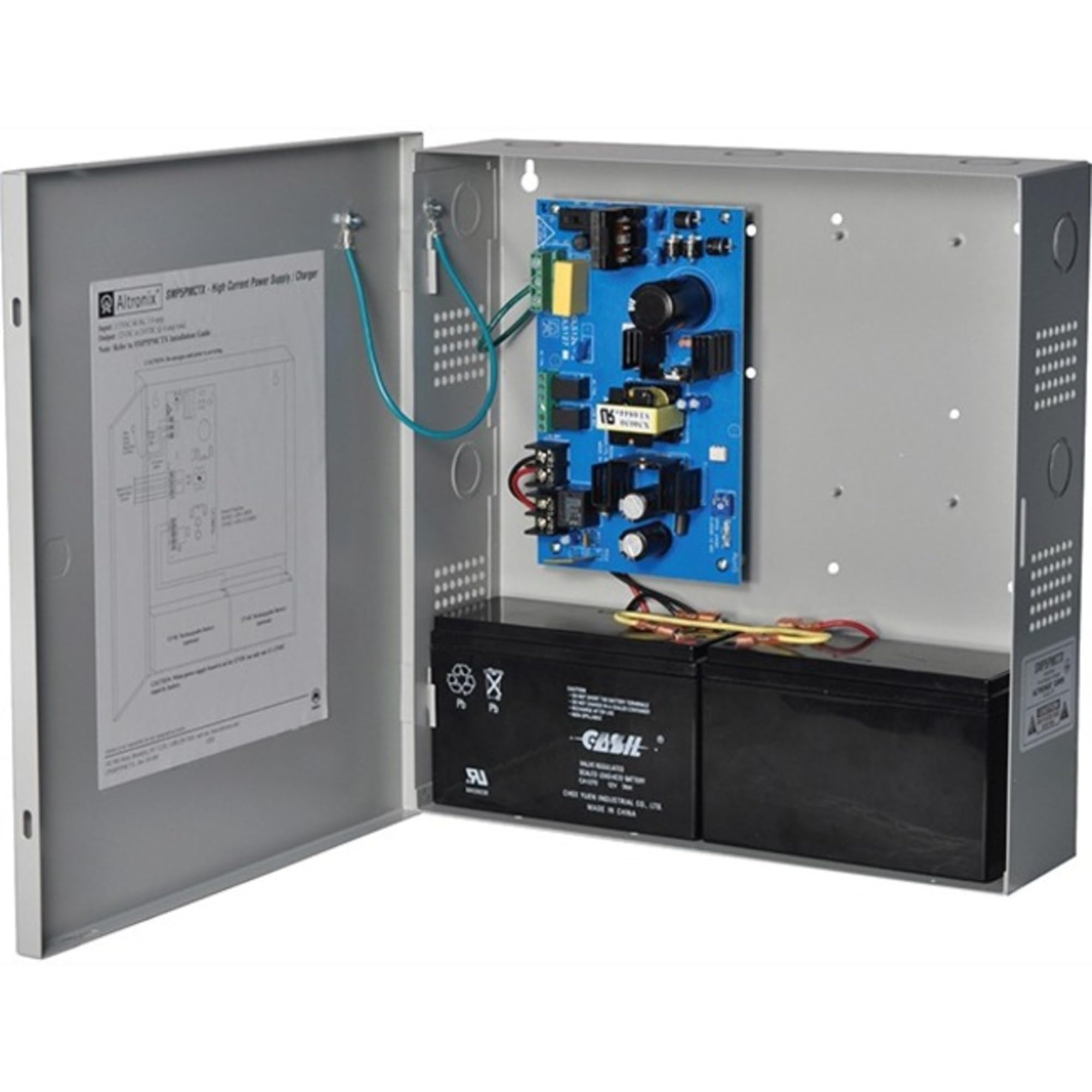

Altronix power supply/charger converts a 115/230V AC 50/60Hz input, to a 12V DC or 24V DC at 4 amp of continuous supply current output. Input: Input 115V AC, 50/60Hz, 0.95 amp or 230V AC, 50/60Hz, 0.5 amp. Output: 12V DC or 24V DC selectable output. 4 amp supply current. Filtered and electronically regulated outputs. Short circuit and thermal overload protection. Built-in charger for sealed lead acid or gel type batteries. Maximum charge current 0.5 amp. Zero voltage drop when switching over to battery backup. AC fail supervision (form "C" contacts). Battery presence and low battery supervision (form "C" contacts). AC input and DC output LED indicators. Operating temperature: 0 to 49 degree C ambient. BTU/Hr: 12V DC: 24.57 BTU/Hr; 24V DC: 49.13 BTU/Hr. System AC input VA requirement: 115V AC: 109.25VA; 230V AC: 115VA. Wall mount enclosure for indoor use. Accommodates up to two (2) 12V DC/7AH batteries. Measures 13-inches width by 13-1/2-inches height by 3-1/4-inches depth. 1/2-inches and 3/4-inches combination knockouts.
